Essential Tips for Choosing the Right Aircraft Cable?
Choosing the right aircraft cable is crucial for safety and performance. These cables are essential for various applications, including control systems and rigging. With numerous options available, it can feel overwhelming.
Consider the specific requirements of your project. Material, strength, and flexibility are key factors. For instance, stainless steel offers excellent durability but may be heavier. In contrast, lighter options may not provide the same strength.
Recognizing your needs can help narrow down choices. It’s not just about function; it’s about safety too. A poor choice could lead to failures. Reflecting on your priorities and understanding the limitations of each type will guide your decision-making. Choosing wisely can make a significant difference in overall performance.

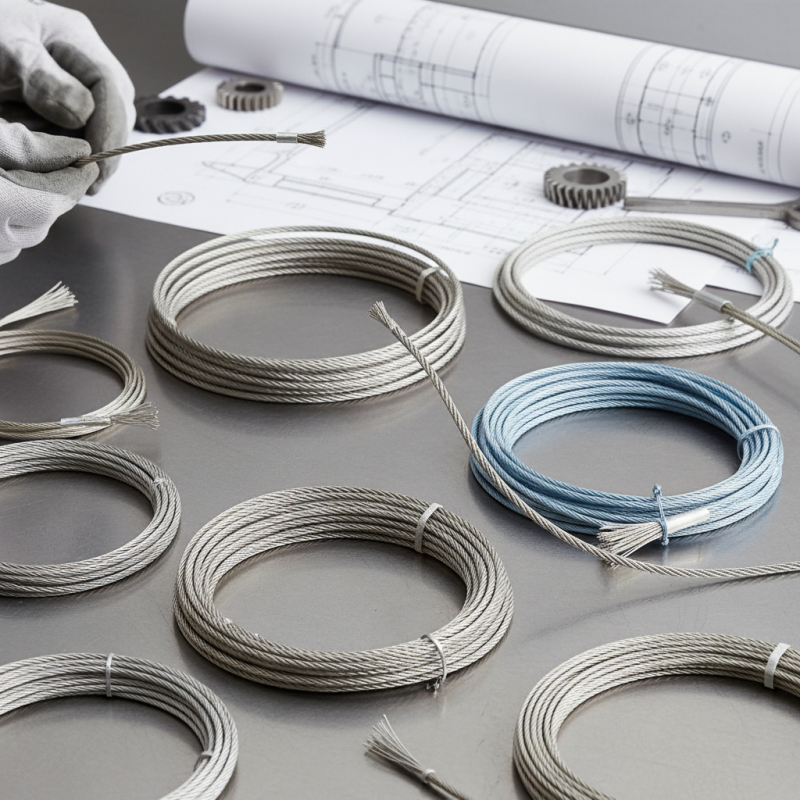

Understanding Aircraft Cable: Types and Applications
Choosing the right aircraft cable involves understanding its types and applications. Aircraft cables are often made of stainless steel or galvanized steel. They come in various constructions, such as 1x19 or 7x19, which indicate the number of wires and strands. According to industry reports, the 7x19 cable is more flexible, making it suitable for intricate applications, while 1x19 is strong and rigid, ideal for straightforward uses.
Specifications vary. The tensile strength of these cables can range significantly. For instance, a 1/8 inch cable typically has a tensile strength of 1,600 to 2,500 pounds. This strength is crucial in aviation, where safety is paramount. Yet, it’s vital to remember that specifications must match the application requirements. Overestimating your needs can lead to excess weight and cost.
Applications of aircraft cables are equally diverse. They are used in control systems, lifting mechanisms, and suspension lines. Each application may require different characteristics. For example, a suspension cable requires durability and weather resistance. However, choosing a cable requires careful consideration of these factors. Misjudgments can lead to failures, impacting safety and performance. Always consult data specific to your application.
Essential Tips for Choosing the Right Aircraft Cable
| Cable Type |
Material |
Applications |
Strength (lbs) |
Temperature Range (°F) |
| Stainless Steel Cable |
Type 304/316 |
Control Systems, Aircraft Flaps |
2000 |
-60 to +250 |
| Aluminum Cable |
6061-T6 |
Lightweight Applications, Instrumentation |
1500 |
-40 to +185 |
| Fiber Optic Cable |
Glass |
Data Transmission, Avionics |
N/A |
-40 to +85 |
| PVC Coated Cable |
Steel with PVC Coating |
General Use, Chassis Control |
1200 |
-40 to +200 |
| Kevlar Reinforced Cable |
Kevlar Fibers |
High-Stress Applications, Emergency Systems |
3000 |
-50 to +300 |
Key Factors to Consider When Selecting Aircraft Cable
When selecting aircraft cable, several key factors demand careful consideration. Material choice significantly influences durability. Common materials include stainless steel and aluminum, each offering distinct benefits. Stainless steel provides excellent corrosion resistance but can be heavier. Aluminum is lightweight but may not withstand heavy loads as effectively. A balanced assessment of weight versus strength is crucial.
Another important factor is cable construction. Aircraft cables typically come in multiple strands. The lay of these strands impacts flexibility and overall performance. A 7x19 strand configuration is popular for its flexibility, while a 1x19 configuration is stiffer and more suitable for specific applications. Knowing the required flexibility is essential for your specific use case.
Load ratings cannot be overlooked. Different cables have different breaking strengths. According to a recent industry report, proper selection correlates strongly with safety and performance. Miscalculations here can lead to operational failures, which are not just costly but potentially dangerous. Selecting the right aircraft cable means understanding these critical details and how they fit into the wider safety framework of aviation practices.
Essential Tips for Choosing the Right Aircraft Cable
When selecting aircraft cables, consider the following key factors that affect their performance and suitability for your specific applications. The chart below illustrates the relative importance of various factors according to industry standards.

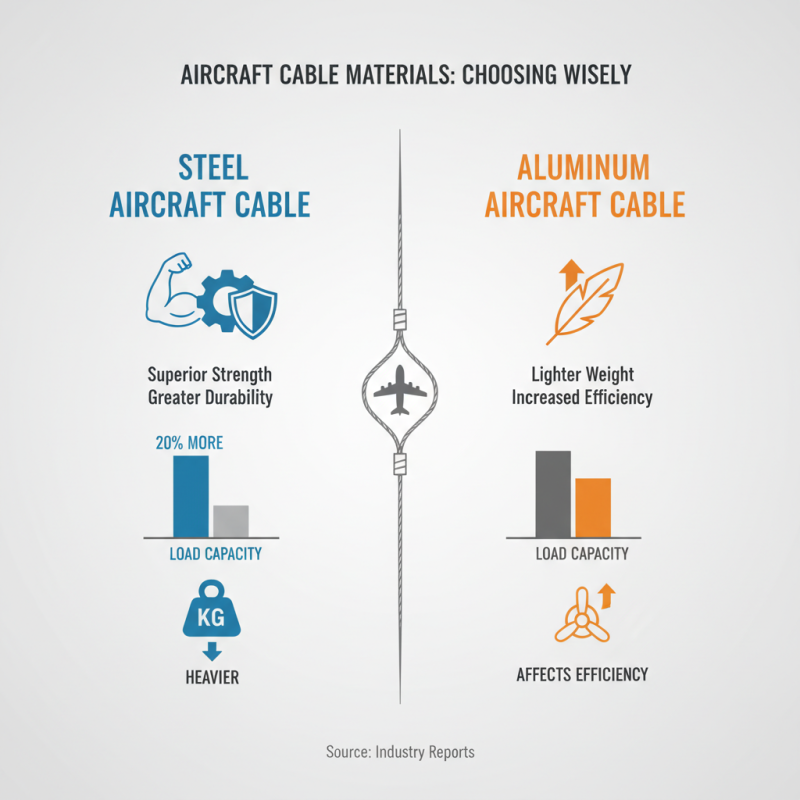

Material Specifications: Steel vs. Aluminum Aircraft Cables
When selecting an aircraft cable, materials are crucial. Steel and aluminum are the most common options, each with unique properties. Steel cables offer superior strength and durability. According to industry reports, steel cables can withstand loads up to 20% greater than aluminum variants. However, they are heavier. This weight can influence the overall efficiency of the aircraft.
On the other hand, aluminum cables present significant advantages. They are lightweight, which is a major consideration in aviation. In many cases, aluminum cables can help reduce fuel consumption by up to 10%. Nonetheless, aluminum may not be as strong as steel in high-stress applications. This trade-off complicates decision-making.
Each material has its own set of benefits and drawbacks. Users must carefully evaluate their requirements. Will they prioritize strength or weight? The wrong choice can lead to performance issues. Understanding the specific applications and load requirements is essential. Choosing the right aircraft cable is not just a matter of preference. It impacts safety and efficiency.
Strength Ratings and Safety Standards for Aircraft Cables
When choosing aircraft cables, understanding
strength ratings and safety standards is crucial.
Look for cables that meet or exceed the required strength ratings for your specific application.
The strength rating indicates how much load the cable can safely carry. A cable with a higher rating often provides an extra safety margin,
which can be critical during flight operations.
Ensure that the aircraft cable adheres to recognized safety standards. These standards are set by aviation authorities to ensure reliability and safety.
Using cables that comply with these standards prevents failures that could lead to serious accidents.
It’s important to verify these certifications.
Tips for selecting the right cable include reviewing the manufacturer's specifications and inspecting cable construction.
Pay attention to materials used; corrosion-resistant cables are ideal for humid environments.
Evaluate the diameter; a thicker cable typically offers more strength. However, consider weight. Lighter cables
improve fuel efficiency but may need more frequent inspections.
Choosing wisely enhances safety while flying.
Maintenance and Inspection Tips for Aircraft Cable Longevity
Regular inspection is crucial for extending the life of aircraft cables. Check for frays, damage, or corrosion. Pay attention to any visible signs of wear. If something looks off, it likely is. A close examination can prevent larger issues down the line. Don’t skip this step!
Maintaining aircraft cables requires a systematic approach. Clean cables gently using a damp cloth to remove dirt and debris. Ensure that connectors are secure and free of rust. A light lubricant can help but use it sparingly. Too much can attract grime.
Remember, neglecting these tasks can lead to failures. Take maintenance seriously; it pays off over time.
